Indoor Fixed LED Display
DVXF Series
A flexible indoor LED display: curved cabinets build corners, columns and full 360° curves with no custom modules.
Pixel pitch
- 1.95 mm
- 2.4 mm
- 3.91 mm
Key Features
Superior Display Performance
800 to 1,000 nits, a 7,680 Hz refresh rate and 16-bit grayscale, for crisp, flicker-free images with no scan lines, even on camera.
Triple-Layer Protection
HOB or GOB encapsulation (optional), precision glue dispensing and a protective face mask greatly reduce pixel failures. Modules ship vacuum-sealed.
Seamless, Flat Splicing

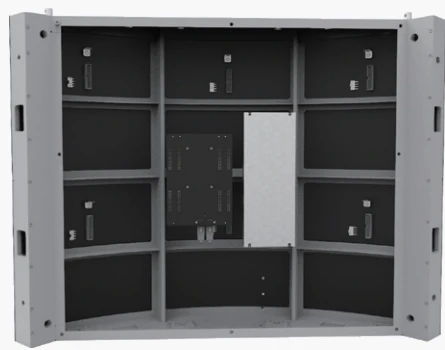

A 39-magnet layout and a cabinet reinforced by four aluminum columns give a perfectly flat screen with no edge warping.
Easy Maintenance
Modules have no A or B side and are interchangeable across pixel pitches. Modules, power supplies and receiving cards are reached from the front or the back.

Flexible Installation
Each cabinet is curved, convex or concave, and splices to the next at a curved right angle: three modules (750 mm) form a curved corner, with no custom modules. Floor-standing and bracket mounts are supported.
Full 360° Curves
Four cabinets close a full 360° curve, convex around a column or concave inside a space, for feature walls and columns that wrap all the way round.


Seamless, Flat Splicing
Thirty-nine magnets in a grid pattern and a cabinet reinforced by four aluminum columns hold every module in place, for a perfectly even screen surface with no edge warping.
Easy Maintenance
Modules have no A or B side and fit any pixel pitch in the series, which keeps spare parts simple. Modules, power supplies and receiving cards are all reached from the front or the back.


Built to Last
Vents in the rear panel and a spacious interior move hot air out quickly, for stable operation over the long term.
Applications
The DVXF Series suits curved feature walls, columns, retail, exhibitions and more.

Command Center

Conference

Exhibition
