Indoor Fixed LED Display
DVQ Series
A fine-pitch indoor COB LED display with an integrated die-cast cabinet, a modular design and dual backup, for seamless video walls.
Pixel pitch
- 0.7 mm
- 0.9 mm
- 1.2 mm
- 1.5 mm
Key Features
Common Cathode Design
Power consumption is about 30% lower than that of similar products.
COB Flip Chip
COB 1R1G1B flip-chip LEDs for a smooth, durable surface.

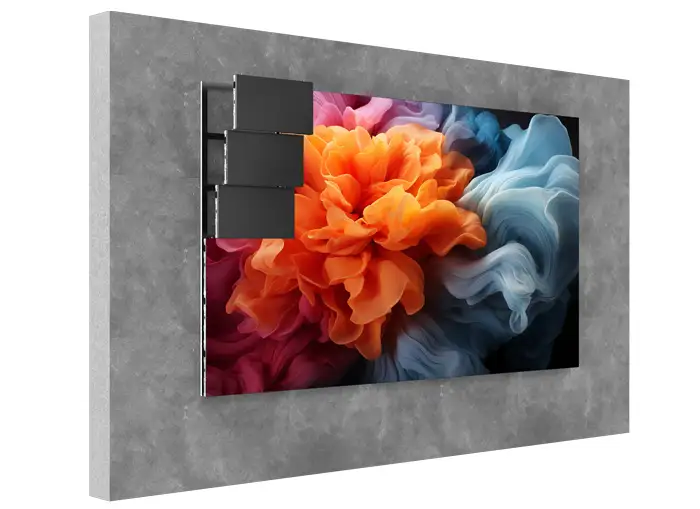

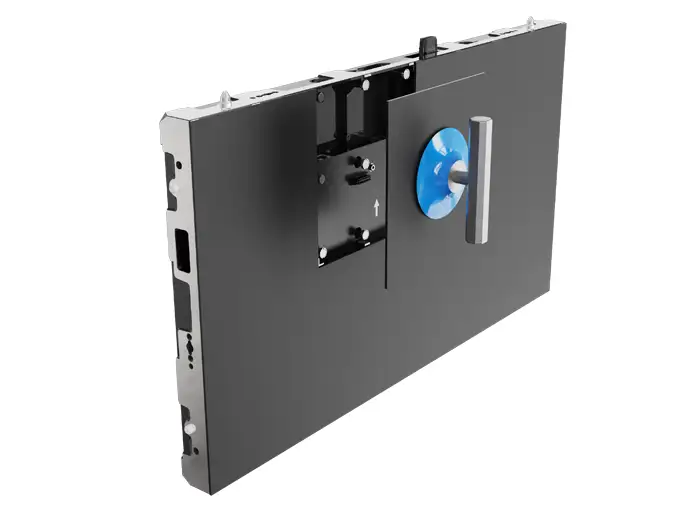

Front Maintenance
Installation and maintenance are done from the front.

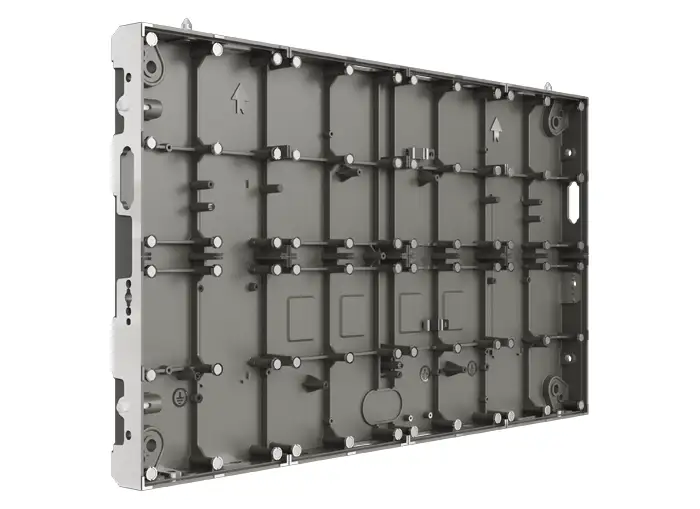

Integrated Cabinet
The integrated, die-cast aluminum cabinet provides strong electromagnetic shielding (EMC test results 40% below the Class A limit), keeping the spread of electromagnetic energy to a minimum.

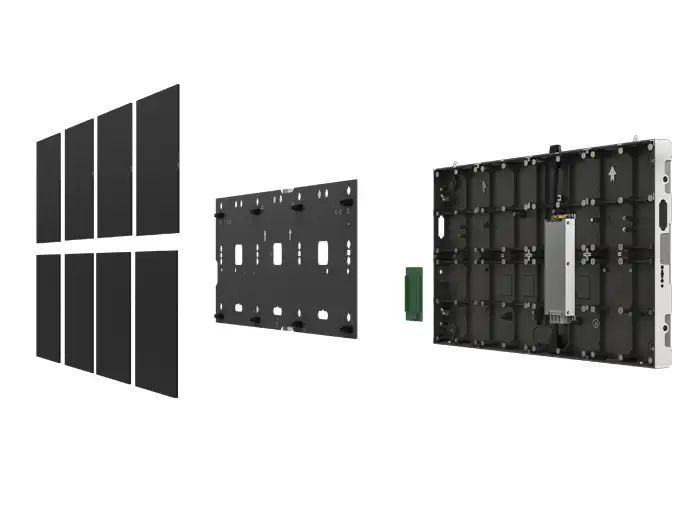

Modular Design

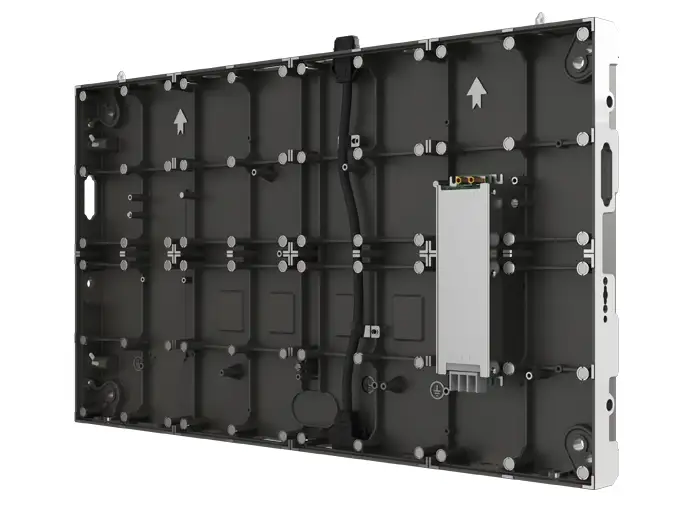

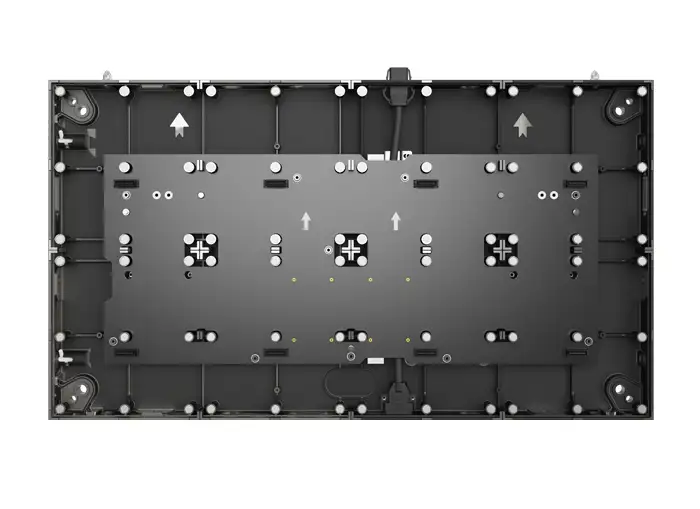

Inside the cabinet, the power supply, HUB board and receiving card are separate modules, each serviced on its own.
Dual Backup
Double power supply and signal keep a fine-pitch LED wall running without interruption.
Specifications
Specifications for the DVQ 0.7, 1.2 and 1.5 models. Specifications for the 0.9 mm pixel pitch are available on request.
| Parameter | DVQ 0.7 | DVQ 1.2 | DVQ 1.5 |
|---|---|---|---|
| Pixel pitch (mm) | 0.78 | 1.25 | 1.56 |
| Panel size (mm) | 600 × 337.5 × 37 | ||
| Pixels per panel (dots) | 768 × 432 | 480 × 270 | 384 × 216 |
| LED type | COB 1R1G1B (flip chip) | ||
| Material | Die-cast aluminum | ||
| Weight (kg) | 4.6 | 4.5 | 4.5 |
| Brightness (nits) | 600 | ||
| Grayscale (bit) | 16 | 13 | 13 |
| Refresh rate (Hz) | 3,840 | ||
| Maximum power (W/m²) | 320 | 260 | 300 |
| Installation and maintenance | Front | ||
| Certification | CE, ETL, FCC | ||
Applications

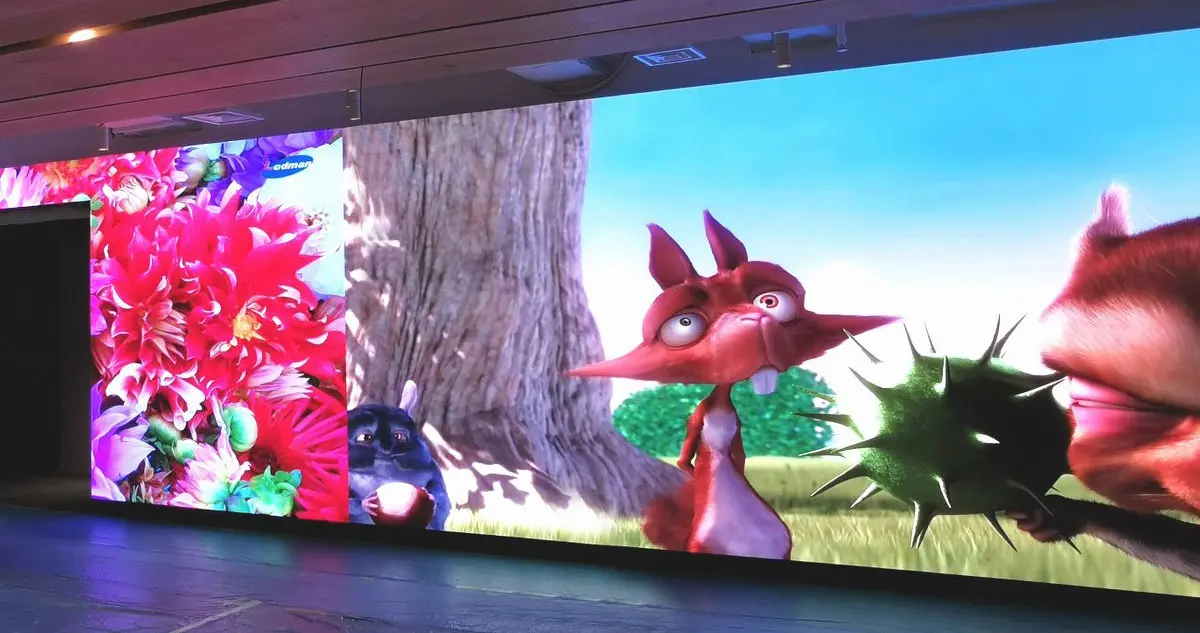

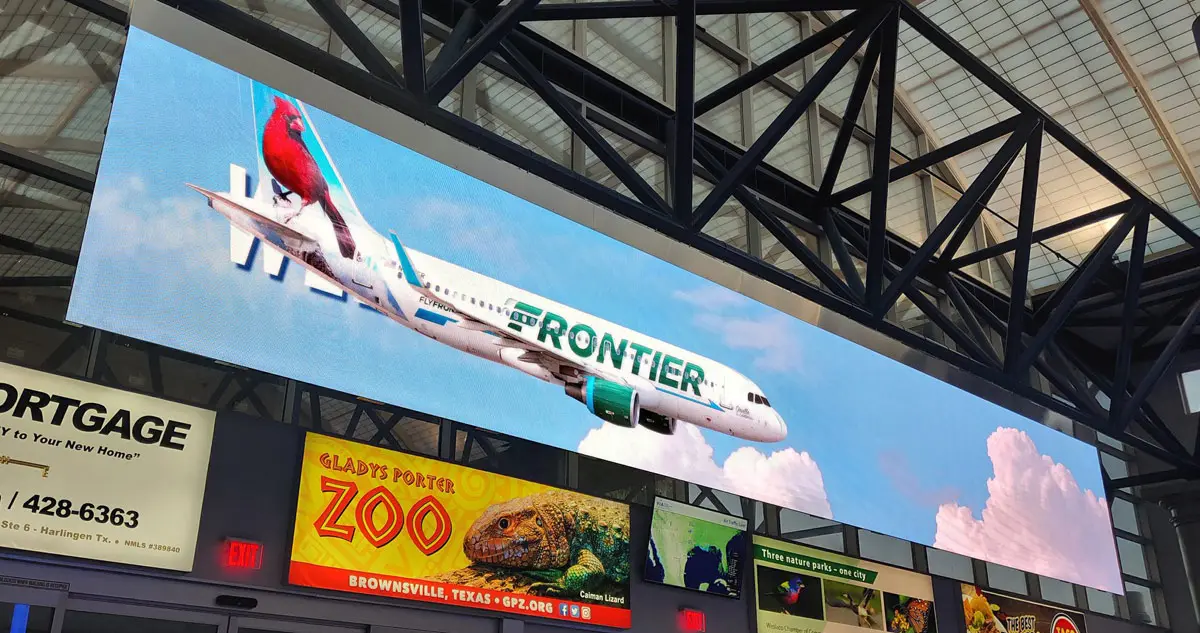

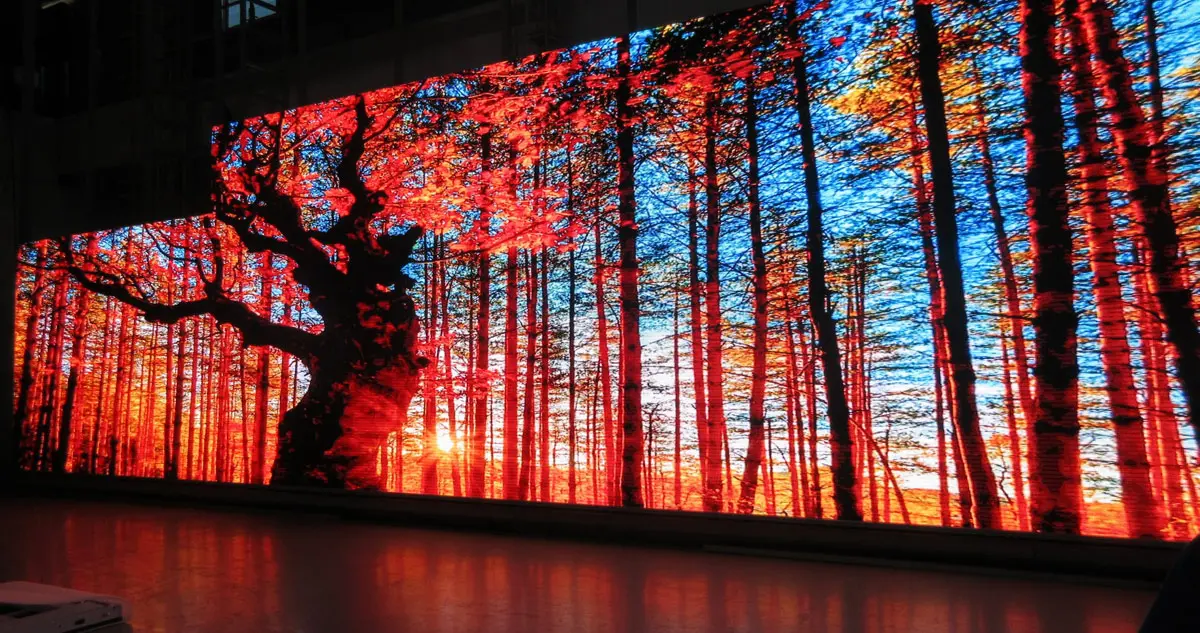

The DVQ Series suits indoor advertising walls, command centers, conference rooms, exhibitions and more.
Command Center
Conference
Exhibition
