Indoor Fixed LED Display
DVD Series
An indoor COB LED display for 4K video walls, with flip-chip COB panels, high brightness, HDR support and low power use.
Pixel pitch
- 0.7 mm
- 0.9 mm
- 1.2 mm
- 1.5 mm
- 1.9 mm
Key Features
High Brightness
Brightness reaches up to 1,500 nits, for the needs of a wide range of settings.
Energy Saving
The DVD Series uses less power than comparable displays, reducing losses and saving resources.
Security and Stability
Die-cast aluminum cabinets and COB modules with a very low rate of pixel failure keep the wall running reliably.
Colorful
COB technology delivers superior color reproduction, lossless image quality and ultra-high contrast, with consistent, deep blacks.
High Dynamic Range (HDR) Support
HDR support brings vivid color and lifelike contrast, with more detail in highlights and shadows.

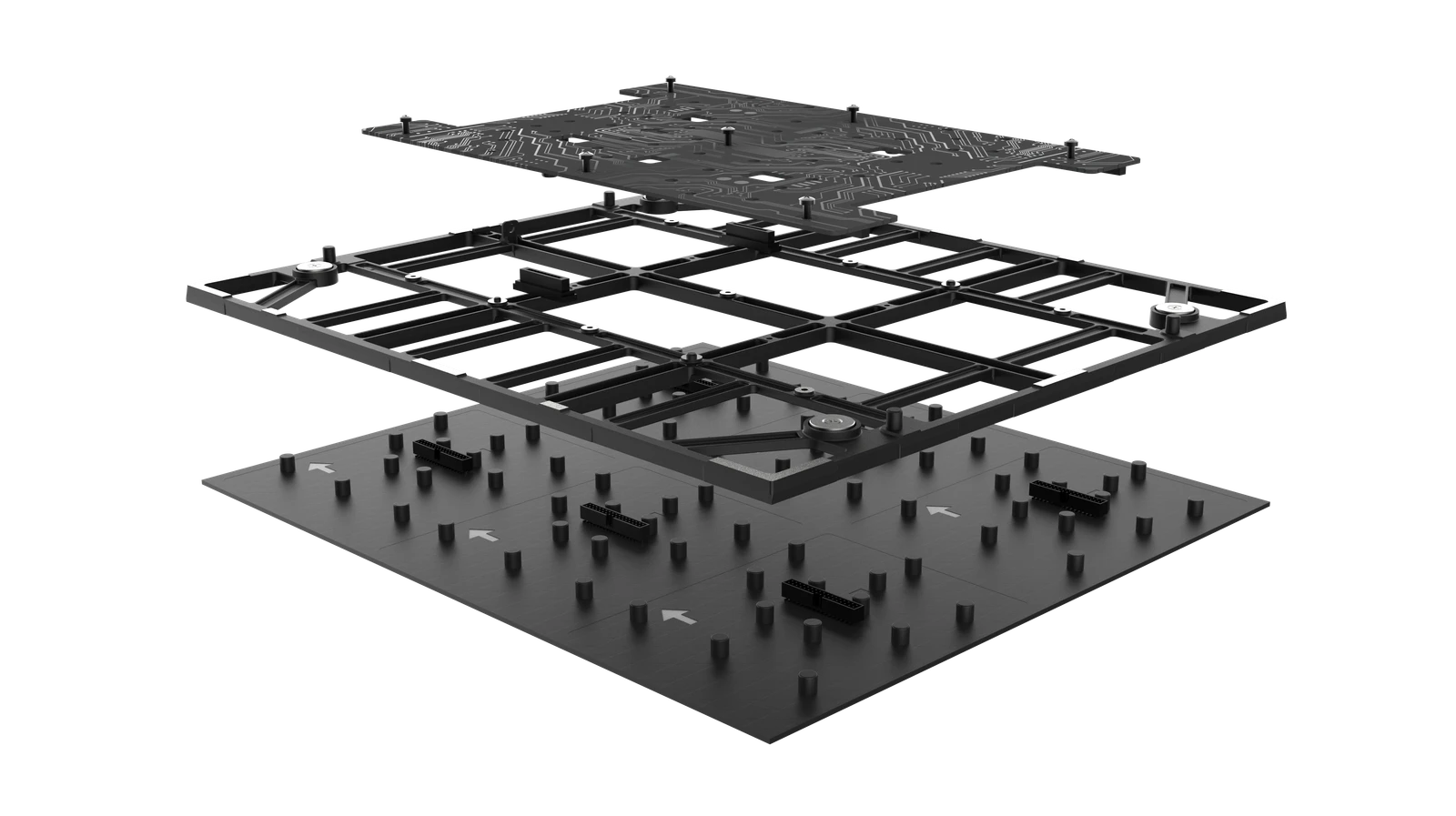

Module With Bottom Shell
Each module sits on a bottom shell, which brings six advantages: accurate color, protection from knocks, a longer life, lower maintenance costs, faster installation and a clean, finished look.
Specifications
Specifications for the 1.58 mm and 1.9 mm models. Specifications for the other pixel pitches are available on request.
| Parameter | 1.58 mm | 1.9 mm |
|---|---|---|
| Pixel pitch (mm) | 1.58 | 1.9 |
| LED type | COB 1R1G1B (flip chip) | |
| Panel size (mm) | 608 × 342 × 37 | |
| Pixels per panel (dots) | 384 × 216 | 320 × 180 |
| Material | Die-cast aluminum | |
| Weight (kg) | 5.2 | |
| Brightness (nits) | 600–1,500 | 600–1,000 |
| Grayscale (bit) | 13 | |
| Refresh rate (Hz) | 3,840 | |
| Maximum power (W/m²) | 340 (1,500 nits) | 260 (1,000 nits) |
| Installation and maintenance | Front | |
| Certification | CE, ETL, FCC | |
Applications
The DVD Series suits indoor advertising walls, command centers, conference rooms, exhibitions and more.
Command Center
Conference
Exhibition
