Outdoor LED Panels suitable for even
the most challenging weather conditions.

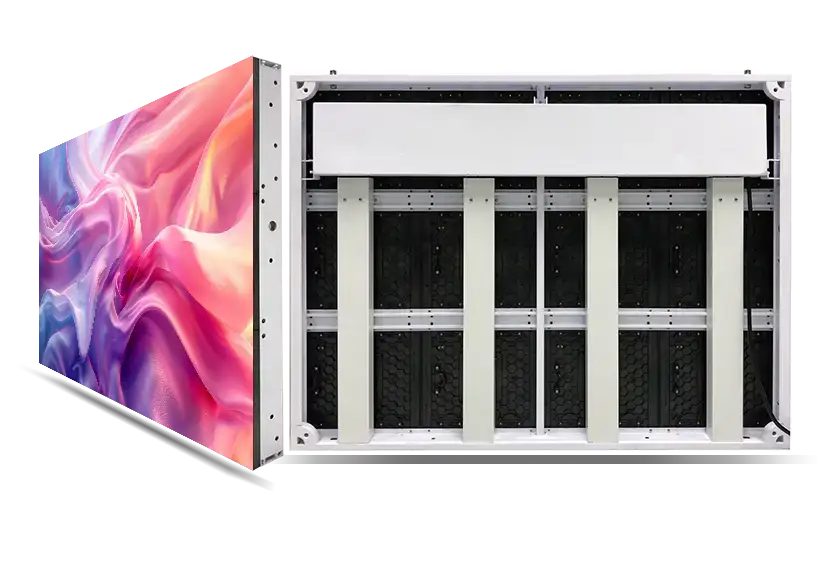

Outdoor Fixed LED Display - DVT Series

The Corum View DVT Series Outdoor LED Panels provide high resolution visuals with a pixel pitch as small as 4.4mm and a super high brightness rating of 8500 nits. An IP67 rating makes these panels suitable for even the most challenging weather conditions. Servicing from both the front and rear of the panels makes maintenance a snap. Perfect for billboards, road signs, retail, houses of worship, school communication and so much more.

Outdoor LED Displays DVT Series

Outdoor Fixed LED Display

DVT Series

  • Pixel Pitch from 4.4mm to 16mm
  • SMD LED Technology
  • IP67 Rated front modules
  • High-Bright up to 8500 nits
  • 16:9 Aspect Ratio Cabinets
  • Both Front and Rear Serviceable
  • LED Display gallery image 2
  • LED Display gallery image 5
  • Direct View LED Display DVT Gallery 1
  • Direct View LED Display DVT Gallery 2
  • Direct View LED Display DVT Gallery 5
LED Display Reliability

High Reliability

  • Paralleling provides direct power and data to modules

  • Modules are connected with a 2 in 1 connector. Both power and data are connected in a heavy-duty, lockable aviation grade connection

Quick Installation

  • Data and Power in one quick connector

  • Single heavy-duty, lockable aviation grade connector, reduces time during installation

Direct View LED Display quick install
Direct View LED Display Installation 2

Convenient Installation and Maintenance.

It allows for the front installation and maintenance, which needs the retention of 100mm space, and the rear installation and maintenance requires the retention of 450mm space.

Allows for front installation and maintenance which requires only 100mm access space or rear installation and maintenance which requires only 450 mm of access space.

PRODUCT SPECIFICATIONS

DVT Series Specifications
